Deeplearning
XSystem can provide users with advanced learning integration solutions, help users quickly into the field of Deep Learning, achieve rapid growth of enterprise applications, quickly transform scientific research into the first productive forces.
Brand new processor This product could deliver higher performance for users' every application with the Intel's latest generation of Xeon Scalable family processors. Compared to the previous generations, the Intel Xeon Scalable family processors offer a significant improvement and better system performance, which could support more CPU cores and max DDR4 2666 memory. Besides, the efficiency of collaboration between CPUs could be significantly increased by using more and faster UPI bus.
Tech Specialty
| Processor | Supported Intel Xeon Scalable product family，high-speed UPI interconnection（10.4/9.6/8.0/6.4 GT/s，based on the types of CPU），large storage and level-three cache（15/20/25/30/35/38 MB，based on the types of CPU） | ||
| Chipset | C621 | ||
| Memory | Supported max 16 DIMMs Supported DDR4 RDIMM/LRDIMM 2666/2400/2133MHz REG（the frequency should be based on the type of CPU and the number of memories） | ||
| Hard Drive | Supported max 24 2.5-inch hot-swappable hard drives（4 NVMe SSDs） Supported 2 M.2 SATA SSDs | ||
| Network Adapters | Intel I350 dual-port gigabit NIC，supported WOL、network redundancy、load balancing and other，supported OCP extension 10G/25G NIC | ||
| PCIE I/O Expansion slots | 1 PCIE（3.0）×16 slot（supported OCP） 10 PCIE（3.0）×16 slots | ||
| GPU | 4 NVIDIA Tesla V100/P100/P40 8 NVIDIA Tesla P4/T4 （GPU based on the compatibility list） | ||
| Storage Controllers | Supported 1 PCIE 3.0 x8 slot，suitable for SAS/RAID extension，supported RAID 0/1/5/6 | ||
| Other Ports | 1 separate IPMI management port 2 front USB 3.0 ports 2 back USB 3.0 ports 1 front VGA port 1 back VGA port | ||
| Management | BMC Integrated chip，supported IPMI2.0 and KVM Over IP high-level management Integrated display controller，32MB | ||
| Operating System | RedHat EL Linux/ Centos 7.4 Windows sever 2012 R2 Ubuntu 16.04 SUSE SLES 12（operating system based on the compatibility list） | ||
| Battery | 1600W/2000W 1+1 high-efficiency redundant battery with PMBus function（certificated by 80plus） | ||
| Battery Voltage | 200-240VAC/240VDC | ||

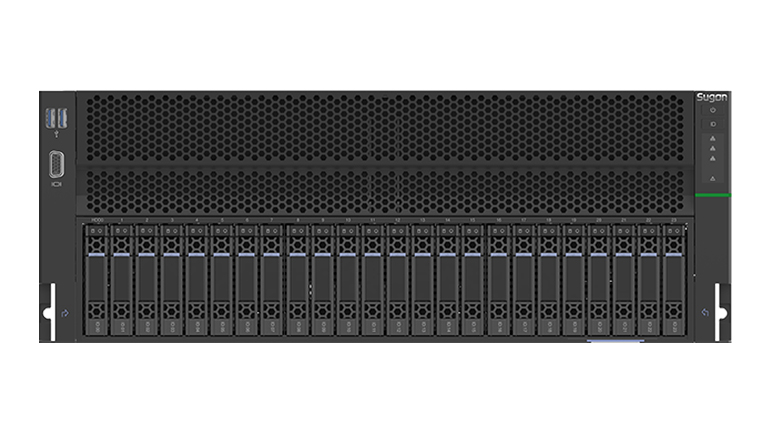

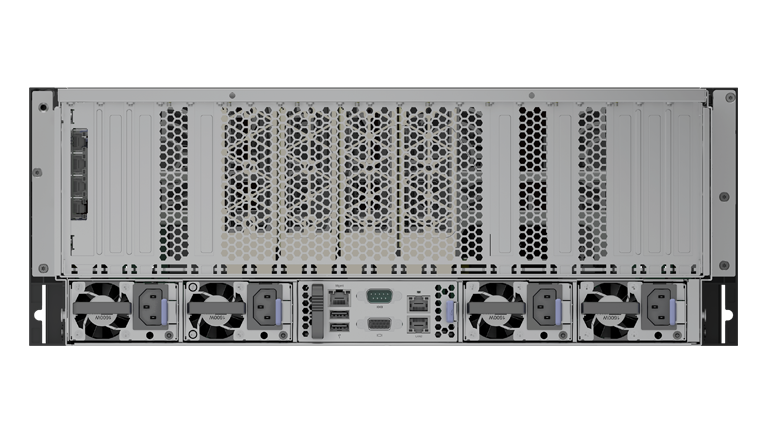

| Chassis | 4U Rack Server | ||
| Chassis Dimensions | 175.5mm（Height）×482mm（Width）×793mm（Depth） | ||
| Max Weight | 53kg | ||
| Environmental Temp Requirement | Processing 10℃～35℃（50℉～95℉） Storage -40℃～60℃（-40℉～140℉） | ||
| Relative humidity requirement | Processing max 90％RH（40℃） Processing 35％～80％ RH Transporting & Storage 20％～93％ RH | ||
| Vibration | Frequency 5Hz～150Hz Acceleration≤20m/s2，Amplitude≤0.15mm | ||
| Impulse | Peak acceleration 150m/s2～300m/s2，Duration time≤11ms | ||
| Collision | Peak acceleration 100m/s2～150m/s2，less than 1000 times | ||
