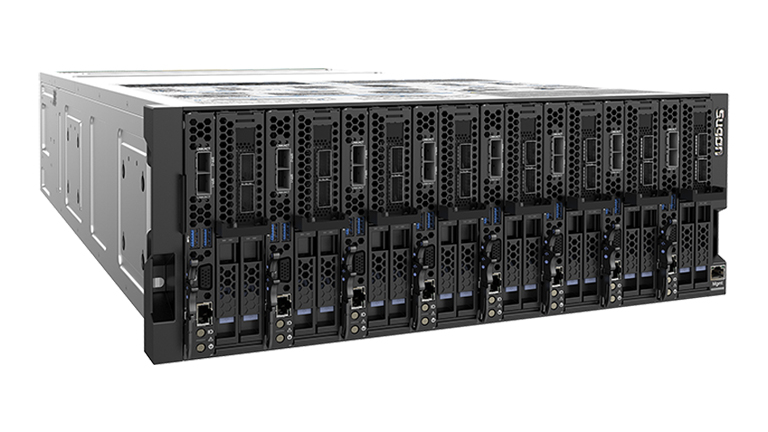

TC4600E G3

Synopsis:

Sugon launched TC4600E blade server, targeting at high performance computing, Web infrastructure and virtualization, which is an industry leading and the latest new generation in conformity with opening standard blade server product.

  • Extremely high computing power density

    8 * Two-Socket compute nodes Support max. 448 physical computing cores

  • Powerful high speed network capacity

    Support 100Gb InfiniBand, Omni-Path and other high speed network technologies Support Multi-Host 100Gb high speed network

  • Flexible expansion and configuration

    Support Max. 16 standard PCIe expansion slots

TC4600E G3 Chassis System Technical Specifications

CX50-G30

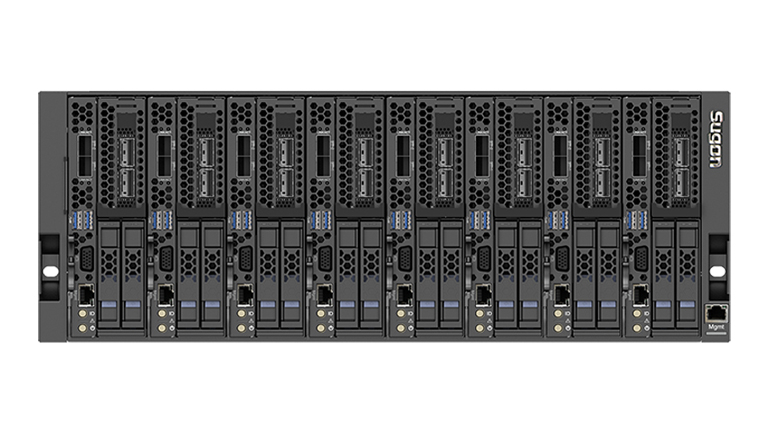

Blade chassis physical appearance characteristics 4U standard chassis height
Computing blade Max. 8 computing blades Provide Two-Socket computing blade based on Intel? Xeon? Scalable processor for option
High speed network Support EDR 100G InfiniBand network Support Intel 100G Omni-Path network Support Multi-Host 100G InfiniBand network
GbE Switched network Support gigabit switched module Externally provide 4 * RJ45 1G ports and 2 * SFP+ 10G ports
PCIe expansion slot 8 * PCIe x16 HH HL standard slots (front) 8 * PCIe x8 HH HL standard slots (rear)
Power module Configure Max. 4 hot-plug redundancy AC power modules with load balancing and fault switching functions. Provide N+1 or N+N power redundancy configuration
Heat dissipation module Configure 5 intelligent redundancy fans with linear pre-compensation function
Management module It can realize remote virtual media, remote KVM, blade status, fault locating, startup and shutdown and other comprehensive management and control functions, and provide one front dedicated blade management interface.
Supporting media Optional 1* external USB DVD-RW; 1 * USB Hub
Dimensions 175.0mm(H)×448.0mm(W)×898.0mm(L)
Weight Max. 35kg (excluding computing blade)
Track for Rackmount specification 601mm~923mm, 2U, maximum load bearing 135 kg
Working Temperature Operating temperature: 5℃～40℃ (41℉～104℉) Storage temperature: -40℃～65℃ (-40℉～149℉)
Working humidity Working maximum relative humidity: 80％RH (40℃) Transportation storage maximum relative humidity: 93％ RH (65℃)
